CANT STRIP & TAPERED EDGE

#008 | Data Sheet | Safety Data Sheet
USDA Biopreferred Program Certificate: CANT STRIP | TAPERED EDGE
Living Building Challenge Letter: CANT STRIP | TAPERED EDGE

CANT STRIP & TAPERED EDGE
ROOF TRANSITION COMPONENTS

Cant Strip / Tapered Edge

DESCRIPTION
CANT STRIP and TAPERED EDGE are a widely accepted, high quality low slope roofing products. Each is durable, lightweight, and environmentally friendly. These components are factory fabricated from BLUE RIDGE FIBERBOARD’s STRUCTODEK insulation board. The CANT STRIPs are cut at angles that provide a true 45-degree angle between horizontal and vertical surfaces. The TAPERED EDGE is cut on angles that slope from zero on one edge to ½” to 2” thickness on the opposite edge.

USES

Both the CANT STRIP and the TAPERED EDGE offer excellent transition and sloping properties which are compatible with most conventional roof systems. (see membrane manufacturer for approval).

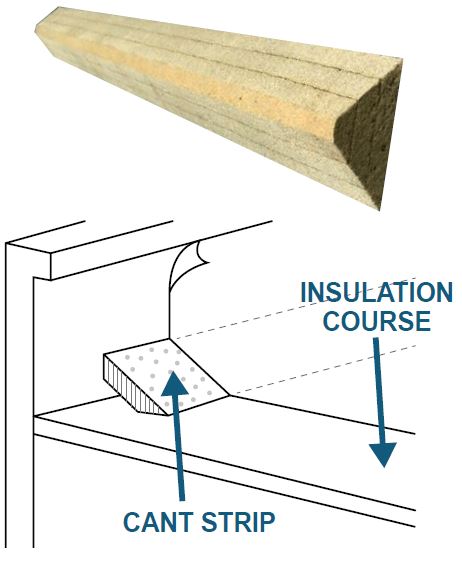

CANT STRIPS provide a smooth transition from horizontal to vertical surfaces.

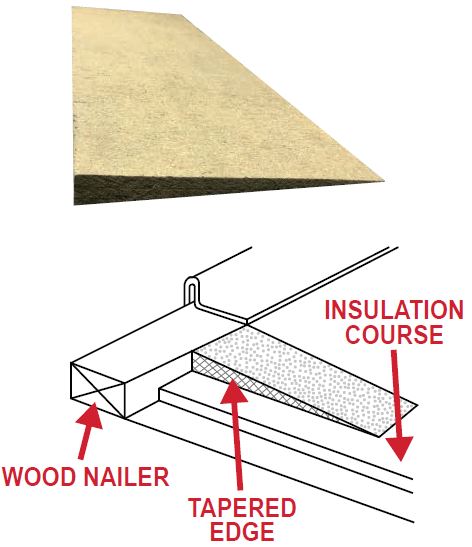

TAPERED EDGE strips are designed for a smooth transition from lower to higher elevations. The taper is manufactured to enhance roof drainage and reduce ponding water wherever there is a change in elevations. Easily fabricated for installation around roof edges, drains or in locations where a slope to 0” is required.

FEATURES/BENEFITS

  • More durable than perlite
  • High R-value
  • Dimensionally stable
  • Environmentally friendly, 100% recyclable wood fiber
  • May contribute to LEED credits
  • Cuts with a knife; lightweight; contractor preferred

MEASUREMENTS

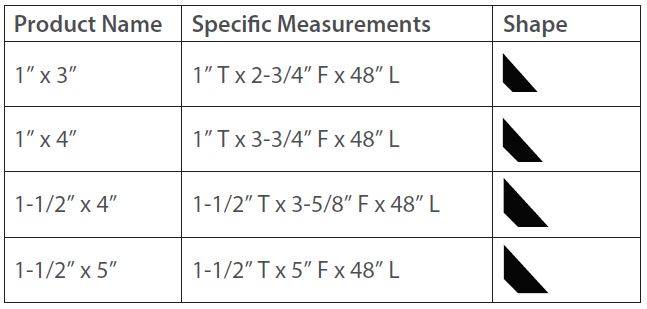

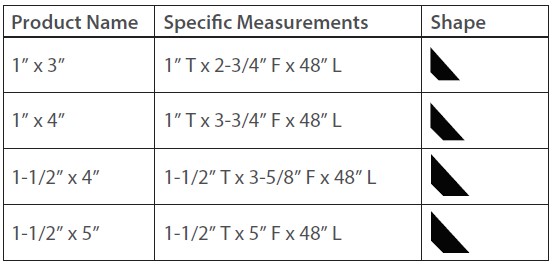

CANT STRIP

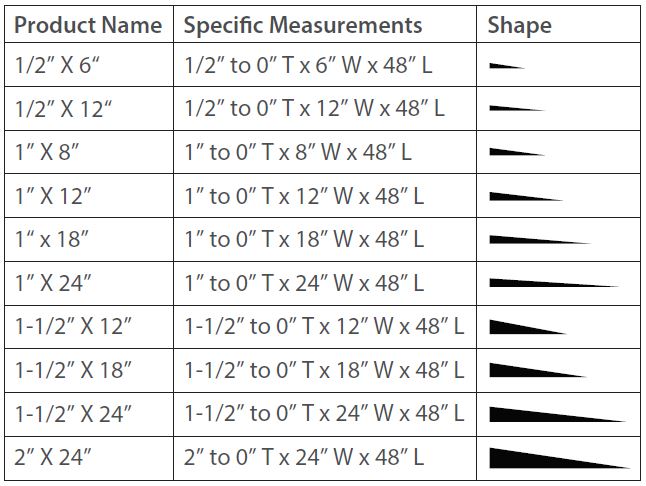

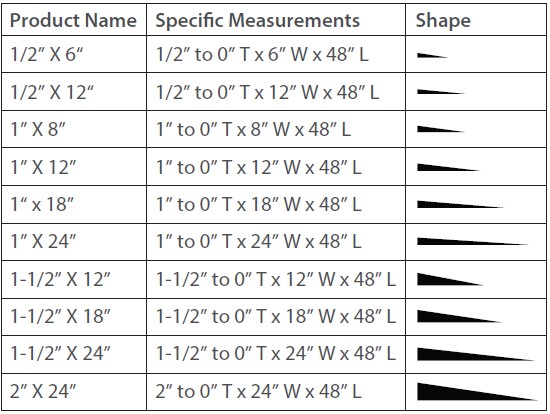

TAPERED EDGE STRIP

SPECIFICATIONS

  • Conforms to ASTM C 208, Type II – Roof insulation board

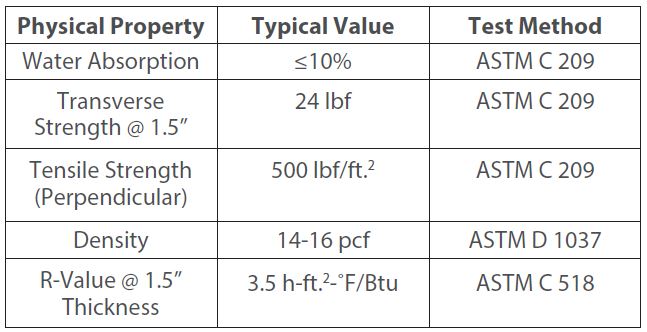

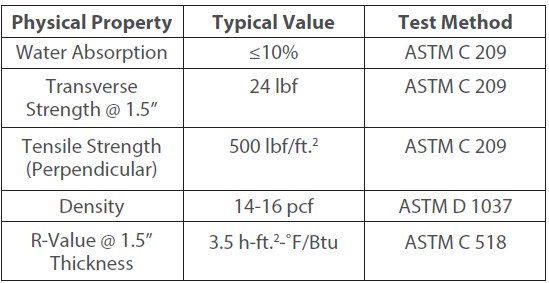

TECHNICAL DATA

APPLICATION

CANT STRIP … Install for a sloping transition of horizontal to vertical surfaces.

TAPERED EDGE … Elevate and slope roof for positive drainage. TAPERED EDGE can be installed on wood, metal, or concrete decks. TAPERED EDGE improves roof drainage, eliminating ponding water, and can be used on both new and re-roof projects.

LEED INFORMATION

May help contribute to:

  • MR Credit: Recycled Content
  • MR Credit: Regional Materials
  • MR Credit: Rapidly Renewable Materials
  • IEQ Credit: Low-Emitting Materials – Composite Wood and Agrifiber Products

Documentation:

MSDS Cant Strip / Tapered Edge SDS Sheet

Data Sheet Cant Strip / Tapered Edge Data Sheet


2024-07
