SOUND-ABATE

Acoustical Shielding
A Mass Loaded Vinyl used in Wall Applications

DESCRIPTION
SOUND-ABATE is a mass loaded, limp vinyl sound damping material designed for commercial, industrial, and residential applications to reduce sound transmission.

USES
SOUND-ABATE is designed for installation behind gypsum drywall, finished surfaces to block and dampen sound transmission through the entire sound frequency spectrum.

APPLICATION

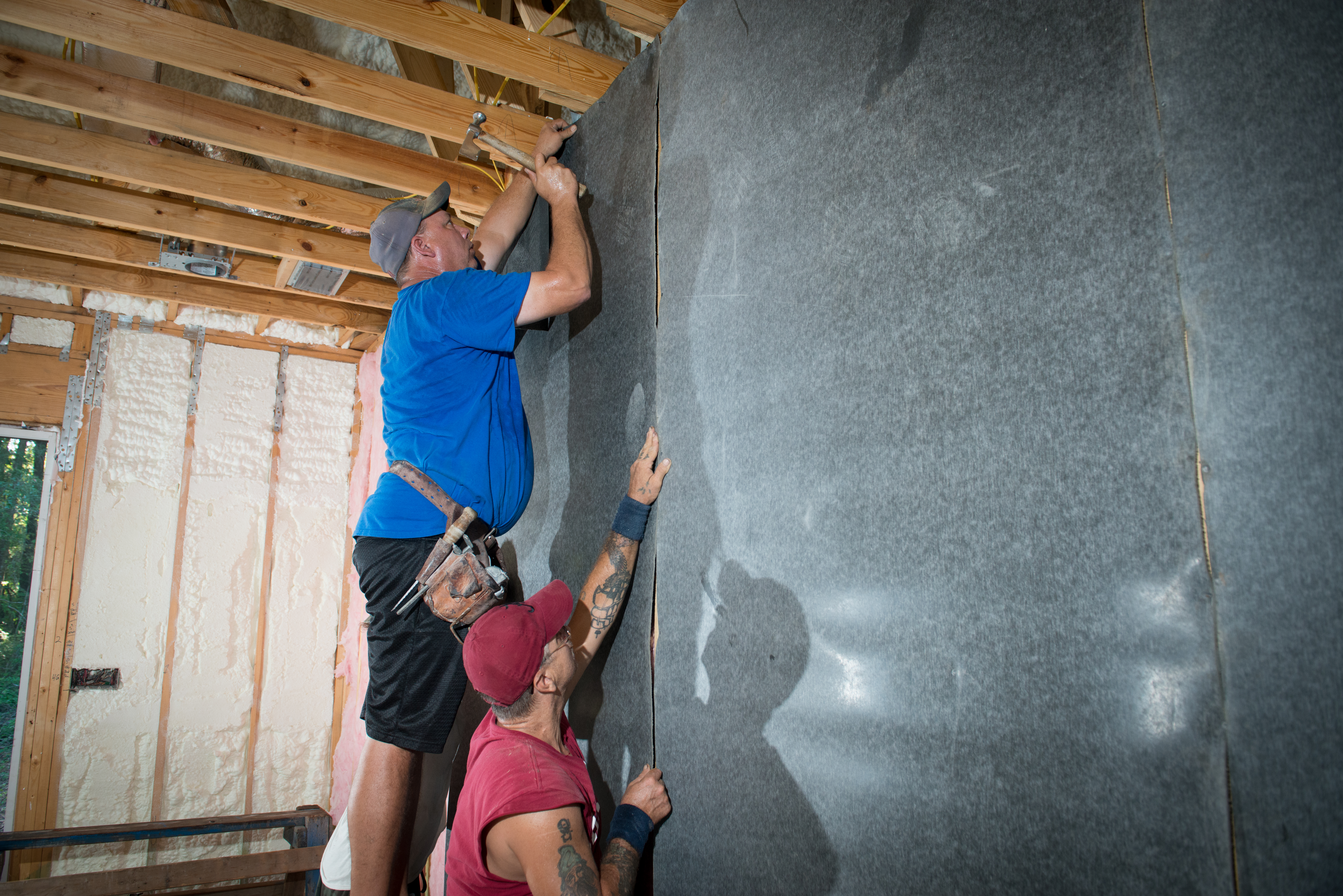

Place SOUND-ABATE sheet in position at top of the wall. Align vertical edges over center of studs. Insert staples along top edge of sheet to hold in place. Allow SOUND-ABATE to unroll vertically along the height of the wall. Apply additional staples along vertical edge if desired. For each additional sheet of SOUND-ABATE to be installed, repeat the previous procedure. Note: Ensure vertical seems center over studs. Trim sheet if necessary. Locate any wall outlet penetrations that will require access and cut an X access point for each. Caulk floor, ceiling, and corner joints before installing drywall.

sound-abate-acoustical-shielding-wall-cavity-applicationsSteel Stud Installation … For installation of SOUND-ABATE Mass Loaded Vinyl sheets over steel studs, follow installation procedures for wood studs and replace staples with self-tapping, flat head metal screws.

FEATURES/BENEFITS

  • Dampens sound and blocks noise by up to 75%.
  • Easy to install – reduces labor and production costs.
  • Thin profile saves material and labor with no added extensions or adjustments
  • Improves HVAC efficiency.
  • One layer improves STC rating by 7 in typical wood and steel studded assemblies (16″ o.c., R13 batt insulation, and 5/8″ gypsum drywall)
  • Classified by Underwriters Laboratories, Inc. as to ANSI/UL 263 Standard, Fire Tests of Building Construction and Materials, UL File CLBV.R39387
  • UL Classified in fire resistant wall designs of the U300, U400, and V400 series.

TECHNICAL DATA

Roll size = 0.10″ x 4′ x 25′ (100 sf) at 100 lbs
Surface weight = 1.0 lb/sf
Material = EVA, Ethylene vinyl acetate copolymer
Contains no PVC
No VOC content, no off-gassing
One hour fire resistance assembly rated per ASTM E 119
Does not support mold growth
Highest Mold Resistance Rating = 10 Per ASTM D3273
STC 26 per ASTM E 90
Class C Flame Spread per ASTM E 84
Flame Spread Index  140      Smoke Developed 250
R Value ≥ 0.3

MASTERFORMAT NUMBER AND TITLE
09 81 00 – Acoustic Insulation
09 81 13 – Acoustic Board Insulation
13 48 00 – Sound, Vibration, and Seismic Control

LEED v3/2009 and LEED v4 Cross Reference Table

LEED v3/2009 New Construction LEED v4 Building Design & Construction (LEED BD+C)
MR Credit 2: Construction Waste Management MR Credit: Construction and Demolition Waste Management
MR Credit 5: Regional Materials MR Credit: Building Product Disclosure and Optimization – Environmental Product Declaration
IEQ Prerequisite 3: Minimum Acoustical Performance (Schools) EQ Prerequisite: Minimum Acoustic Performance (Schools)
IEQ Credit 4.4: Low-Emitting Materials EQ Credit: Low-Emitting Materials
IEQ Credit 9: Enhanced Acoustical Performance (Schools) EQ Credit: Acoustic Performance
IEQ Credit 10: Mold Prevention (Schools) EQ Credit: Indoor Environmental Quality, Thermal Comfort
ID Credit 1: Innovation in Design IN Credit: Innovation

2018-02
